Item discription
Cooling tower will be provide for cooling purpose of coated strip. After Up pass cooling, the strip is cooled down max. 250 ℃. After down pass cooling, the strip is cooled down max. 150 ℃ Final cooling ( Water Quench), the strip cooled down max.40 ℃.
This item consists of Up pass cooling unit, top roll, Horizontal cool ing unit, Down pass cool ing unit Water Quench unit, steering roll with CPC.

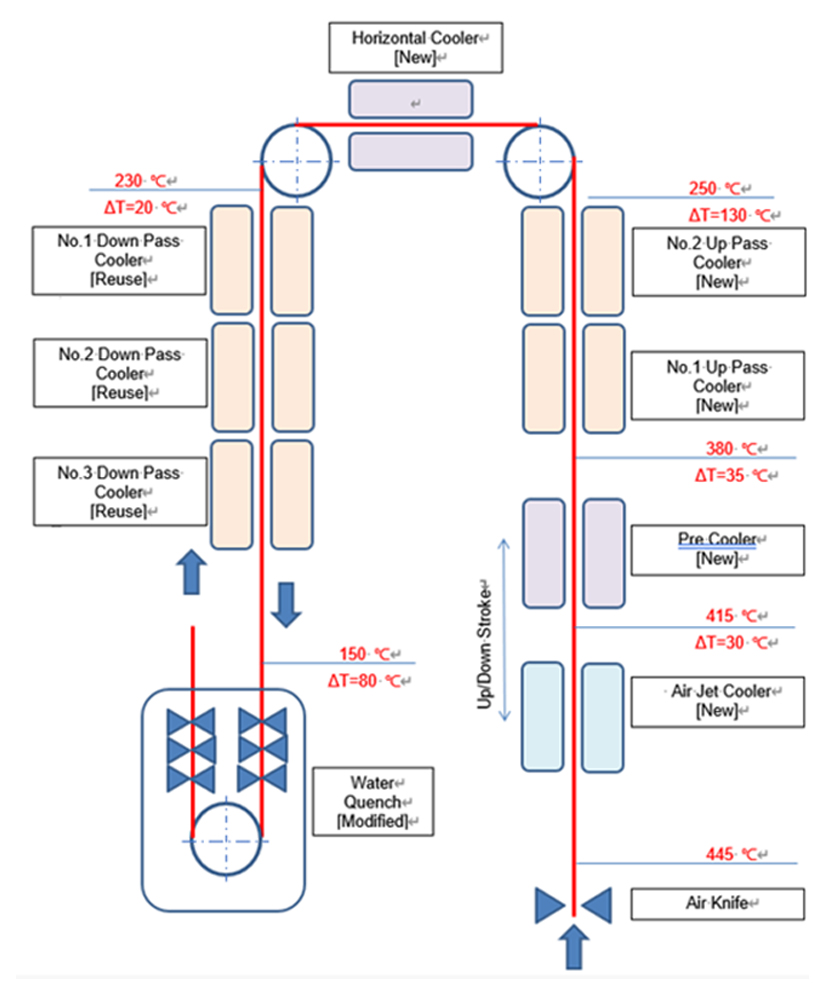

Detail line drawing
Main Part Details
Fog Spray Cooler

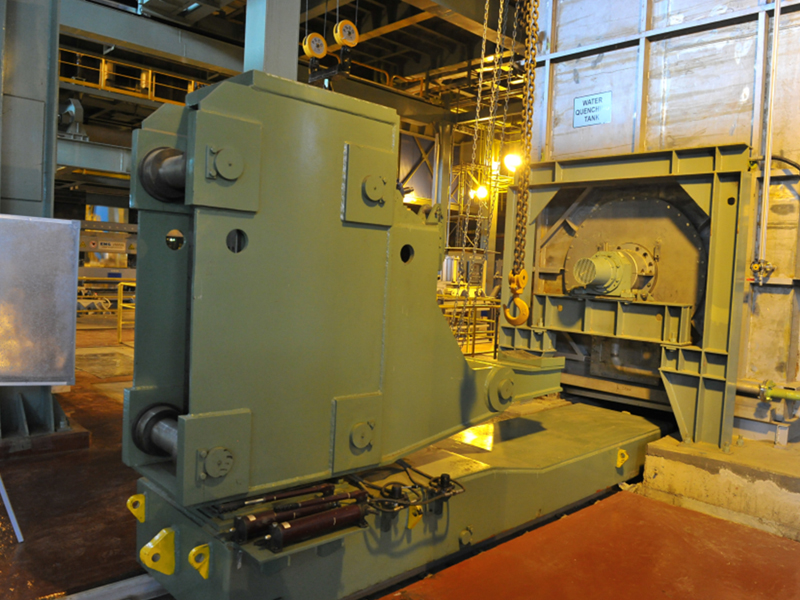

Water Quench
Top roll & Clamp

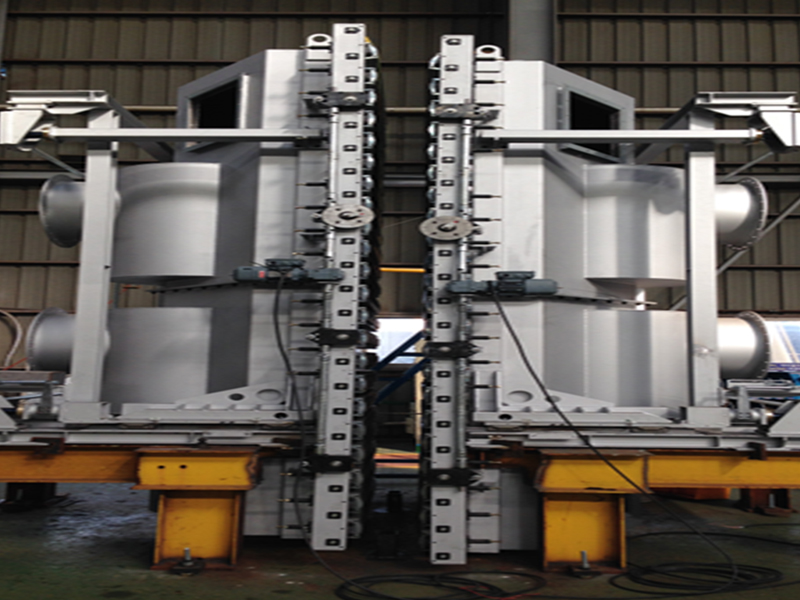

Air Jet Cooler (Lip width adjustable)
