Pot Roll System
0
1628
2022.07.31 12:52
Item discription
The sink roll, mounted on a rig which spans the zinc pot on the back side of the strip, guides the strip in the zinc bath through the air knives, upwards.
Technologies :
- Automatic scraper unit for sink and stabilizing roll.
- Integrate mono-frame.
- Robust design of roll frame and optimal combination of bearing units prevent the vibrations of the strip.

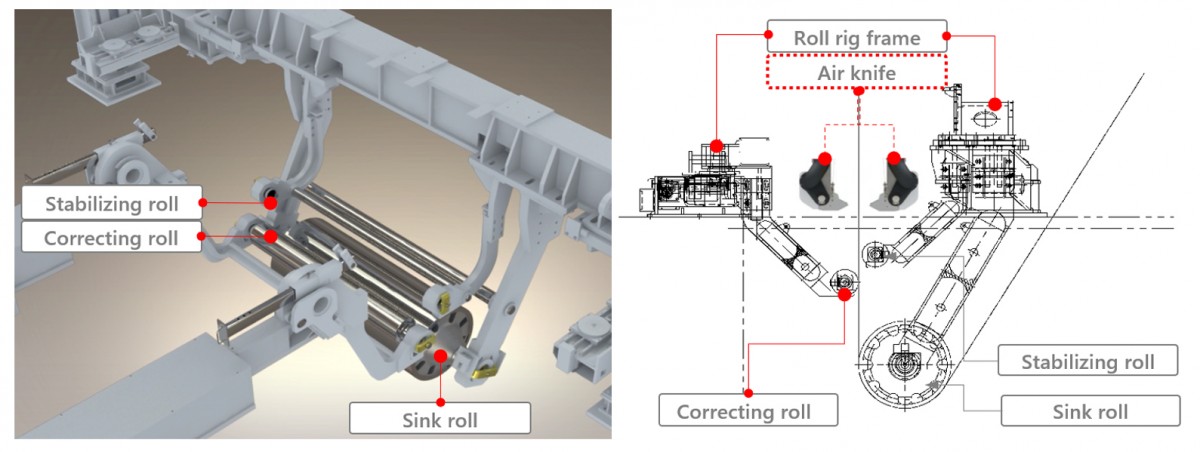

Detail line drawing
Main Part Details

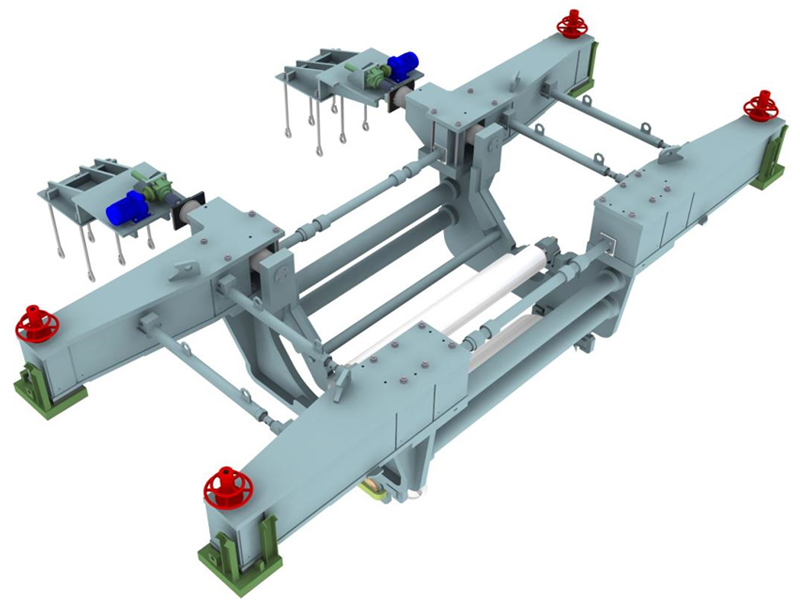

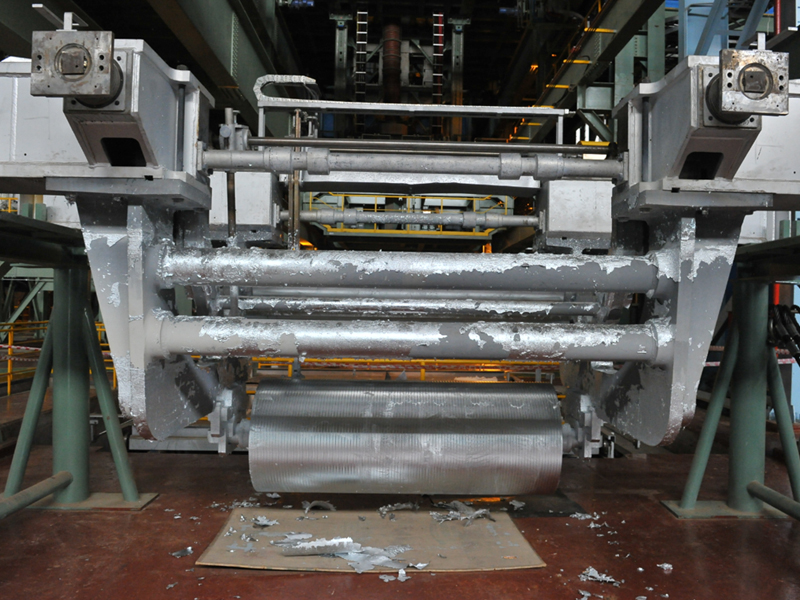

Pot roll Assembly

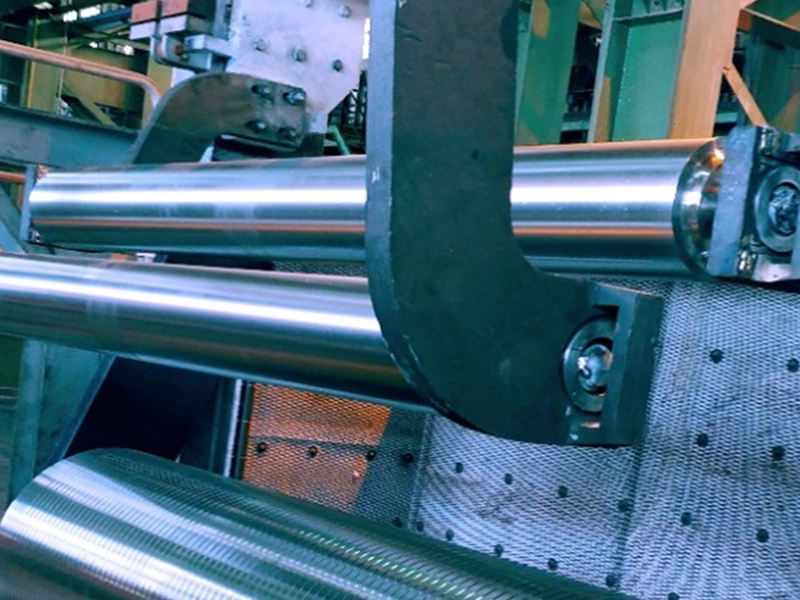

Stabilizing, correcting roll

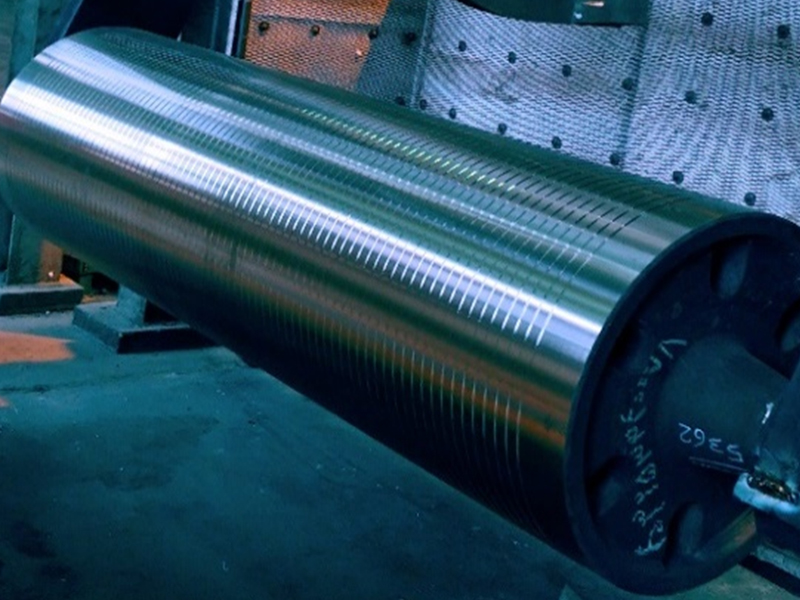

Sink roll
Roll rig frame
